- Place of Origin: GUANGDONG
- Brand Name: LAMPSHINING
- Model Number: LSLBL-320W
Main Feature
6 years warranty
With most suitable beam angle 90 ° and 120°
Original bridgelux LEDs which up to 150Lm/W
With the best quality meanwell driver HLG series
They are assembled module by module,easier for replacing
IP66 waterproof ,dust-proof ,explosion-proof and anti-corrosion
Using aluminum fin heat sink which heat transfer faster than die cast
Tiny package and lighter,lower freight cost,more competitive in the market
Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc
Specifications
Model | LSLBL-320W |
Wattage | 320W |
Luminous Flux | 34000 Lm |
Light Source | 240pcs Bridgelux 45Mil |
LED QTY | 240pcs |
Driver Power | External Meanwell Driver HLG-320H-36A |

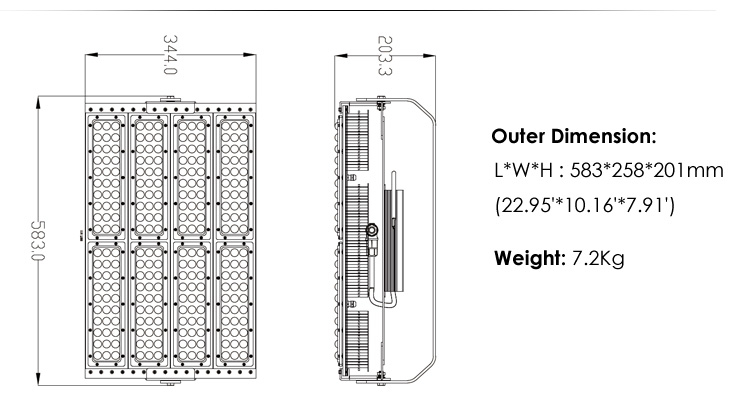

Dimension | L*W*H : 583*344*201mm(22.95'*13.54'*7.91') |
Equivalent | 750W - 1000W metal halide / HID lamp Equivalent |
CCT | 3000K/4000-4500K/5000-5700K/6000-6500K |
Input Voltage | 100-300VAC,347-480VAC 50/60Hz |
Power Factor | >0.95 |
Cap Type | Base Options:US,Europe,UK,Australia plug |
optical lens | 90 degree and 120 degree |
Construction | Aluminum fin heat sink stainless steel |
Beam Angle | 90° and 120° |
IP Rating | IP66 |
CRI | >80 |
Working Tempe / Humidity | -45 to 50 Deg C / @Ta=25 Deg C |
Warranty | 6 year Warranty |
Rated Lifespan | 50,000 hours |
Certified | ETL cETL TUV CE RoHS SAA FCC PLC DLC Ctick certified |
Installation Methods
1,Arm mounted,using in billboard etc
2,All mounted,using in commercial building
3,Ceiling mount,using in warehouse,workshop or factory
4,Pole mount,using in outdoor roadway,street lighting,high mast lighting etc
Installation Height
Inner Box
L * W * H | 66cm*45cm*20cm |
Gross Weight | 9.0kg |
Package qty | 1pc/CTN |
Outter Carton:
L * W * H | 66cm*45cm*20cm |
Gross Weight | 9.0kg |
Package qty | 1pcs/CTN |
