- Place of Origin: GUANGDONG
- Brand Name: LAMPSHINING
- Model Number: LSCB-20WXY
Using high brightness of original packed Epistar 2835 SMD chip which achieves 120lm/w
As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .
Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360°).
Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.
No spot, no black area, long life span and less brightness decay
Various lamp bases are available , a wide range of applications.(E39/E40 mogul, E26/E27 medium)
Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.
No magnetic disturbance influence and CE & RoHS standard compliant.
No UV and near-IR radiation in the light beam.
36 months warranty
| Model | LSCB-20WXY | LSCB-30WXY | LSCB-40WXY | LSCB-50WXY | LSCB-60WXY | LSCB-70WXY |
| Wattage | 20W | 30W | 40W | 50W | 60W | 70W |
| Luminous Flux | 2600 Lm | 3800 Lm | 5100 Lm | 6200 Lm | 7200 Lm | 8400 Lm |
| LED QTY | 168pcs | 240pcs | 340pcs | 440pcs | 540pcs | 64pcs |

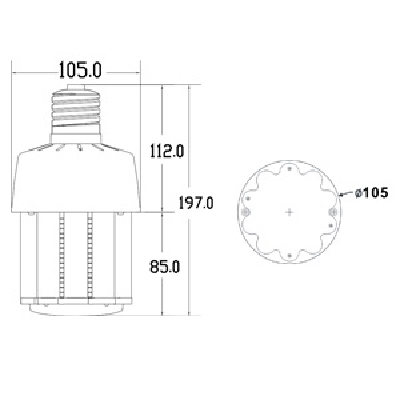

| Dimensions | Ø4.1x7.75 in | Ø4.1x7.75 in | Ø4.1x9.09 in | Ø4.1x9.09 in | Ø4.1x10.51 in | Ø4.1x11.93 in |
| Replaces | 75W HPS | 105W HPS | 150W HPS | 225W HPS | 250W HPS | 300W HPS |
| CCT | 2700-3500K/ 4000-5000K/ 6000-6700K | |||||
| Input Voltage | 100-300VAC,50/60Hz | |||||
| Power Factor | >0.8 | |||||
| Cap Type | E40/E39 (mogul) E27/E26(Medium) | |||||
| Cover | Milky cover,clear cover and NO cover options | |||||
| Light Source | 2835 Epistar SMD | |||||
| Beam Angle | 360° | |||||
| IP Rating | 60 | |||||
| CRI | >80 | |||||
| Working Humidity | @Ta=25 Deg C | |||||
| Working Temperature | -45 to 50 Deg C @Ta=25 Deg C | |||||
| Rated Lifespan | 50,000 hours | |||||
| Certified | ETL cETL TUV CE RoHS SAA FCC Listed | |||||
