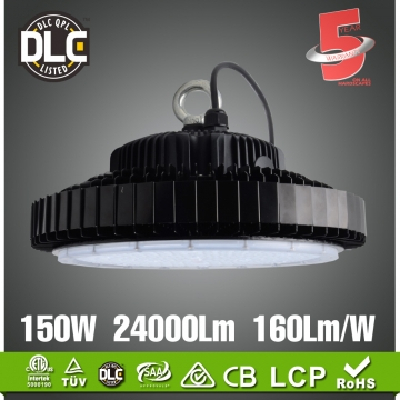

150W High Brightness UFO LED High Bay Lighting, DLC SAA TUV ETL Listed, 400W HPS/MH Bulbs Equivalent, 24000lm 160Lm/W, Waterproof, Daylight White, 6000K, 60° 90° 120° Beam, Super Bright Commercial Lighting, LED High Bay Lights.
Main Feature
5 years warranty
With most suitable beam angle 60° 90° and 120°
Original Philips SMD 3030 which up to 160Lm/W
With the best quality meanwell driver HBG series
They are assembled by module light weight aluminum fin
IP66 waterproof ,dust-proof ,explosion-proof and anti-corrosion
Using aluminum fin heat sink which heat transfer faster than die cast
Tiny package and lighter,lower freight cost,more competitive in the market
Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc
Wide voltage AC100-300V and 347VAC 480VAC,High efficiency constant current drives,Efficiency of power supply is more than 90%.

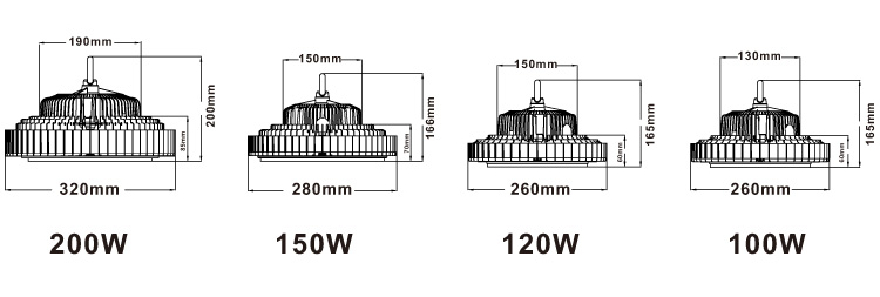

Dimensions 100W 120W 150W 200W UFO High Bay Light
| DLC NO. | Rated Wattage | Luminous efficiency | Beam Angle | Lumen | Dimension |
| LSUFO-100WND & LSUFO-100WD | 100W | 140Lm/W | 60° / 90° / 120° | 14000Lm | 260mm*165mm |
| LSUFO-120WND | 120W | 140Lm/W | 16800Lm | 260mm*165mm | |
| LSUFO-150WND & LSUFO-150WD | 150W | 150Lm/W | 22500Lm | 280mm*166mm | |
| LSUFO-150WND & LSUFO-150WD | 150W | 160Lm/W | 24000Lm | 280mm*166mm | |
| LSUFO-200WND & LSUFO-200WD | 200W | 140Lm/W | 28000Lm | 320mm*200mm |
Example: LSUFO-150WND
| Series | Watt | Dimmable |
| LSUFO | 100W | D (Dimmable ) ND (None-dimmable) |
| LSUFO | 120W | |
| LSUFO | 150W | |
| LSFUO | 200W |
Specifications - 150W UFO LED High Bay Light
| Model | LSUFO-150WXY-H |
| Wattage | 150W |
| Luminous Flux | 24000 Lm |
| Light Source | Philips SMD 3030 |
| LED QTY | 244 |
| Driver Power | Non-dimmable Meanwell HBG-160-48A Dimmable Meanwell HBG-160-48B |
| Dimension | Diameter*Height: 280mm*165mm |
| Equivalent | 500W metal halide / HID lamp Equivalent |
| CCT | 3000K/4000-4500K/5000-5700K/6000-6500K |
| Input Voltage | 100-300VAC,347-480VAC 50/60Hz |
| Power Factor | >0.95 |
| Cap Type | Base Options:US,Europe,UK,Australia plug |
| Dimmable | YES |
| Construction | Retrofit fin aluminum stainless steel |
| Beam Angle | 60° 90° and 120° |
| IP Rating | IP65 |
| CRI | >80 |
| Working Tempe / Humidity | -45 to 50 Deg C / @Ta=25 Deg C |
| Warranty | 5 year Warranty |
| Rated Lifespan | 50,000 hours |
| Certified | ETL cETL TUV CE RoHS SAA FCC PLC DLC Ctick certified |
