- Place of Origin: GUANGDONG
- Brand Name: LAMPSHINING

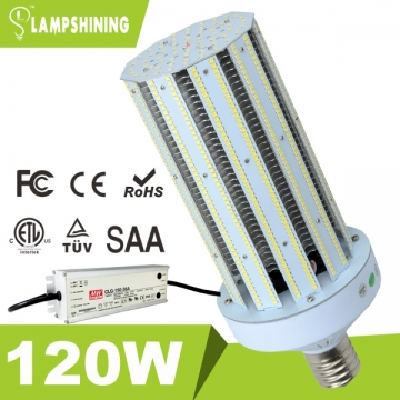

- Model Number: LSCB-120WXY-E
Using high brightness of original packed Epistar 2835 SMD chip which achieves 120lm/w
As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .
Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360°).
Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.
No spot, no black area, long life span and less brightness decay
Various lamp bases are available , a wide range of applications.(E39/E40 mogul)
From 40Watt to 150 Watt,they are available with 347-480VAC
No magnetic disturbance influence and CE & RoHS standard compliant.
No UV and near-IR radiation in the light beam.
36 months warranty
Technical Specification
| Model | LSCB-40WXY | LSCB-50WXY | LSCB-60WXY | LSCB-70WXY | LSCB-80WXY | LSCB-100WXY | LSCB-120WXY | LSCB-150WXY |
| Wattage | 40W | 50W | 60W | 70W | 80W | 100W | 120W | 150W |
| Luminous Flux | 5100 Lm | 6200 Lm | 7200 Lm | 8400 Lm | 9800 Lm | 13000 Lm | 15000 Lm | 20000 Lm |
| LED QTY | 340pcs | 440pcs | 540pcs | 640pcs | 740pcs | 860pcs | 1060ocs | 1160pcs |
| Driver Model | PLN-45-36A | CEN-60-36A | CEN-60-36A | CEN-75-36A | CEN-100-36A | HLG-100 | HLG-120 | HLG-150 |

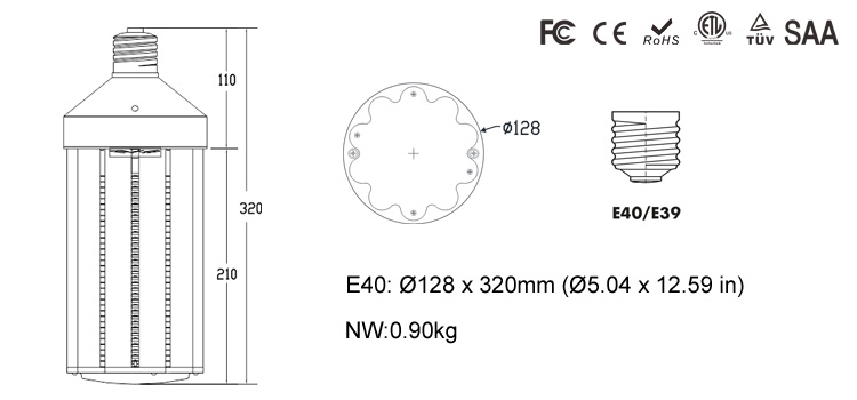

| Lamp Size(No cover) | Φ 105 * 219mm | Φ105*219mm | Φ105*255mm | Φ105*291mm | Φ105*283mm | Φ128*282mm | Φ128*307mm | Φ128*332mm |
| Lamp Size (cover) | Φ 105*231mm | Φ105*231mm | Φ105*267mm | Φ105*303mm | Φ105*303mm | Φ128*295mm | Φ128*320mm | Φ128*345mm |
| Replaces | 150W HPS | 255W HPS | 250W HPS | 250W HPS | 300W HPS | 400 HPS | 450 HPS | 500W HPS |
| CCT | 2700-3500K/ 4000-5000K/ 6000-6700K | |||||||
| Input Voltage | 100-300VAC, 347-480 VAC ,50/60Hz | |||||||
| Power Factor | >0.8 | |||||||
| Cap Type | E40/E39 (mogul) E27/E26(Medium) | E40/E39 (mogul) | ||||||
| Cover | Milky cover,clear cover and NO cover options | |||||||
| Light Source | 2835 Epistar SMD | |||||||
| Beam Angle | 360° | |||||||
| IP Rating | IP60 | |||||||
| CRI | >80 | |||||||
| Working Tempe / Humidity | -45 to 50 Deg C / @Ta=25 Deg C | |||||||
| Rated Lifespan | 50,000 hours | |||||||
| Certified | ETL cETL TUV CE RoHS SAA FCC certified | SAA CE RoHS certified | ||||||
