- Place of Origin: GUANGDONG
- Brand Name: LAMPSHINING
- Model Number: LSHBL-200WXY

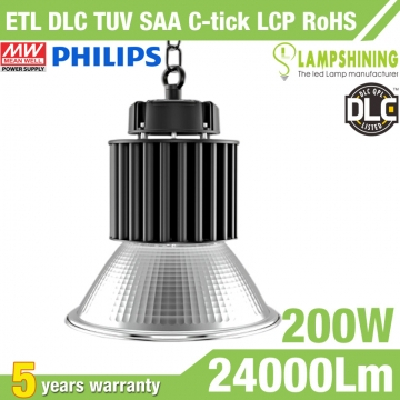

Using high power Philips SMD 3030 133Lm/W chip,200w led high bay light equivalent to 500W HID/Metal Halide lamp,More beam angle options of reflector lets you choose the right use place.The size of the reflector is optional.25°,60°,90°,100° and 120° are available，including 6 items of the aluminum fin reflector，which greatly improves the light utilization.No black spot or blinking.Easy installation, adjustable stand and modules lets you point the light at different angles.Available running at 110VAC & 277VAC,IP65,ideal for indoor and even for outdoor use.Chips are high brightness SMD 3030,Internal waterproof HBG Meanwell Power spply which is ETL DLC TUV CB SAA C-tick LCP RoHS listed.
| Main Specification T=25℃ | ||
| Item No. | LSHBL-200WXY | |
| Light | LED Type | Philips SMD 3030 |
| Luminous Flux(lm) | 24000 Lumen | |
| CCT（K) | 3000K/4000K/4500K/5000K/5700K/6500K | |
| CRI | > 80 | |
| Beam Angle of reflector | 25° / 60° / 100° | |
| Lifespan (Hrs) | > 50,000Hours | |
| Electricity | Input Voltage（V) | 100-277VAC,50/60Hz |
| Frenquency (Hz) | 60/50 Hz | |
| Power Consumption(W) | 200W | |
| Power Factor | > 0.95 | |
| Time of starting (S) | 0 | |
| Power Supply | Meanwell Isolated Power supply(HBG-160-36A) | |
| Power Efficiency | >0.95 | |
| Replacement | 500W Metal Halide Lights | |
| Structure | Materials | Extruded aluminum MPCB LENS stainless |

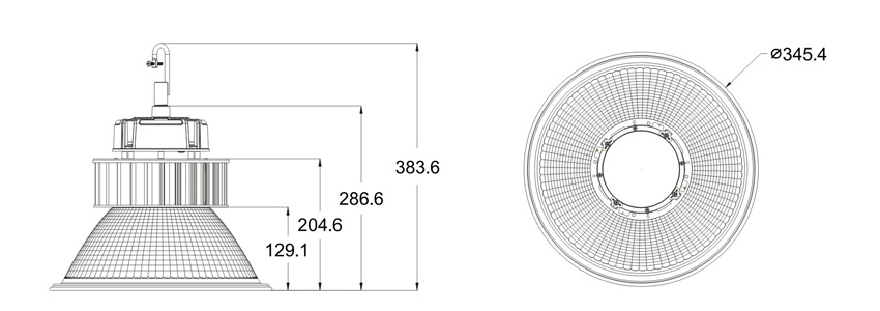

| Dimension | Dia*H: 345mm*464mm | |
| Base Options | US,Europe,UK,Asia standard plug | |
| LENs | Acrylic LENs | |
| IP Rating | IP65 waterproof and dustproof | |
| Certificate | Working Temp/humidity | -25℃ ～ 55℃、10% ～ 90% R.H. |
| Storage Humidity | -40℃ ～ 85℃、0% ～ 95% R.H. | |
| IES files | Lighting simulations support | |
| Certificate | ETL DLC TUV CB SAA C-tick LCP RoHS | |
| Environmental cert | RoHS | |
Feature
1.The new design led high bays with pure copper tube clinging to light source directly, transfer the heat generated by the light source to the heat sink quickly,which greatly increases heat conduction velocity.
2.The size of the reflector is optional.25,60,90,100 and 120 are available，including 6 items of the aluminum fin reflector，which greatly improves the light utilization.
3.Five connection ways making the installation easier.Pipe installation,Hook installation,Rings hook installation，E40 base installation,Angle bracket installation，totally are 5 convenient installation ways.
Package:
1pc per box
Box Size : 57*57*28cm Gross weight: 3.0kg
100° reflectors/45*45*17cm/8pcs per carton
60° reflectors/37*37*20cm/8pcs per carton
25° reflectors/44*44*23cm/8pcs per carton
